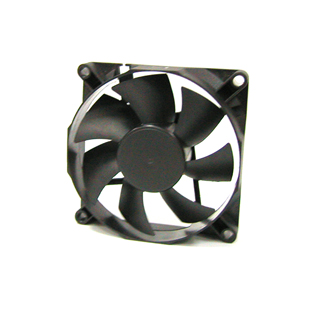

Description
Frame Type:Plastic housing and blade material are UL 94V-0 rating
Impeller:Plastic(UL:94-0)
Bearing:Ball / 1Ball / Sleeve Bearing
Operating Temperature:-10°C to +70°C
Lead Wire:UL 1007 AWG#26
Voltage Available:5V / 12V / 24V / 48V
Weight:68grams
Specification
| Model | Bearing SE | Bearing B1 | Bearing B2 | Voltage (v) | Speed (RPM) | Current (A) | Power (W) | AirFlow (CFM) | StaticPressure (mm-Aq) | Noise dB(A) |
| DF0802505XXLN | - | - | - | 05 | 2200 | 0.31 | 1.6 | 27.5 | 2.1 | 25.7 |
| DF0802505XXMN | - | - | - | 05 | 2500 | 0.42 | 2.1 | 31.1 | 2.3 | 29 |
| DF0802505XXHN | - | - | - | 05 | 3000 | 0.51 | 2.6 | 37.2 | 3.3 | 35.6 |
| DF0802512XXLN | - | - | - | 12 | 2200 | 0.1 | 1.2 | 27.5 | 2.1 | 25.7 |
| DF0802512XXMN | - | - | - | 12 | 2500 | 0.13 | 1.6 | 31.1 | 2.3 | 29 |
| DF0802512XXHN | - | - | - | 12 | 3000 | 0.2 | 2.4 | 37.2 | 3.3 | 35.6 |
| DF0802512XXUN | - | - | - | 12 | 4000 | 0.39 | 4.7 | 47.3 | 5.3 | 40.8 |
| DF0802524XXLN | - | - | - | 24 | 2200 | 0.08 | 1.9 | 27.5 | 2.1 | 25.7 |
| DF0802524XXMN | - | - | - | 24 | 2500 | 0.11 | 2.6 | 31.1 | 2.3 | 29 |
| DF0802524XXHN | - | - | - | 24 | 3000 | 0.14 | 3.4 | 37.2 | 3.3 | 35.6 |
| DF0802524XXUN | - | - | - | 24 | 4000 | 0.23 | 5.5 | 47.3 | 5.3 | 40.8 |
| DF0802548XXLN | - | - | - | 48 | 2200 | 0.04 | 1.9 | 27.5 | 2.1 | 25.7 |
| DF0802548XXMN | - | - | - | 48 | 2500 | 0.05 | 2.4 | 31.1 | 2.3 | 29 |
| DF0802548XXHN | - | - | - | 48 | 3000 | 0.07 | 3.4 | 37.2 | 3.3 | 35.6 |
| DF0802548XXUN | - | - | - | 48 | 4000 | 0.16 | 7.7 | 47.3 | 5.3 | 40.7 |
