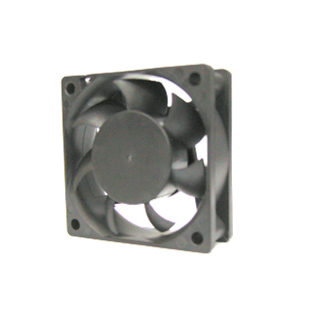

产品
描述
框架类型：Plastic housing and blade material are UL 94V-0 rating
叶轮：Plastic(UL:94-0)
轴承：Ball / 1Ball / Sleeve Bearing
工作温度：-10°C to +70°C
导线：UL 1007 AWG#26
可用电压：5V / 12V / 24V
重量：35g
规格
| 机种 | 轴承 SE | 轴承 B1 | 轴承 B2 | 额定 电压(v) | 转速 (RPM) | 额定 电流(A) | 功率 (W) | 风量 (CFM) | 静压 (mm-Aq) | 噪音 dB(A) |
| DF0601505XXLN | - | - | - | 5 | 3000 | 0.16 | 0.8 | 14.8 | 1.8 | 26 |
| DF0601505XXMN | - | - | - | 5 | 3500 | 0.23 | 1.2 | 15.4 | 2.3 | 31 |
| DF0601512XXLN | - | - | - | 12 | 3000 | 0.1 | 1.2 | 14.8 | 1.8 | 26 |
| DF0601512XXMN | - | - | - | 12 | 3500 | 0.12 | 1.4 | 15.4 | 2.3 | 31 |
| DF0601512XXHN | - | - | - | 12 | 4000 | 0.16 | 1.9 | 18.7 | 3.8 | 33 |
| DF0601512XXUN | - | - | - | 12 | 4500 | 0.2 | 2.4 | 20.3 | 4.4 | 35 |
| DF0601524XXLN | - | - | - | 24 | 3000 | 0.08 | 1.9 | 14.8 | 1.8 | 26 |
| DF0601524XXMN | - | - | - | 24 | 3500 | 0.09 | 2.2 | 15.4 | 2.3 | 31 |
| DF0601524XXHN | - | - | - | 24 | 4000 | 0.11 | 2.6 | 18.7 | 3.8 | 33 |
| DF0601524XXUN | - | - | - | 24 | 4500 | 0.15 | 3.6 | 20.3 | 4.4 | 35 |
