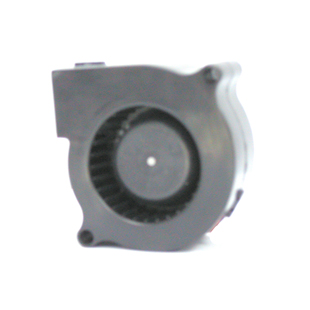

产品
描述
框架类型：Plastic housing and blade material are UL 94V-0 rating
叶轮：Plastic(UL:94-0)
轴承：Ball / 1Ball / Sleeve Bearing
工作温度：-10°C to +70°C
导线：UL 1007 AWG#26
可用电压：5V / 12V
重量：42g
规格
| 机种 | 轴承 SE | 轴承 B1 | 轴承 B2 | 额定 电压(v) | 转速 (RPM) | 额定 电流(A) | 功率 (W) | 风量 (CFM) | 静压 (mm-Aq) | 噪音 dB(A) |
| DF0502505XXLN | - | - | - | 5 | 4000 | 0.31 | 1.55 | 3.96 | 7.65 | 34.3 |
| DF0502505XXMN | - | - | - | 5 | 4500 | 0.49 | 2.45 | 5.29 | 10.2 | 37.7 |
| DF0502505XXHN | - | - | - | 5 | 5000 | 0.69 | 3.45 | 6.5 | 12.69 | 38.5 |
| DF0502512XXLN | - | - | - | 12 | 4000 | 0.18 | 2.16 | 3.96 | 7.65 | 34.3 |
| DF0502512XXMN | - | - | - | 12 | 4500 | 0.21 | 2.52 | 5.29 | 10.2 | 37.7 |
| DF0502512XXHN | - | - | - | 12 | 5000 | 0.34 | 4.08 | 6.5 | 12.69 | 38.5 |
