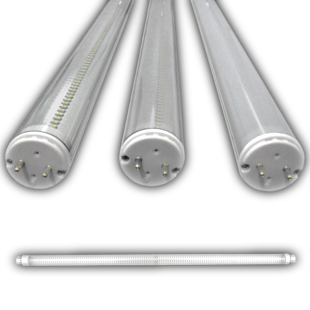

T8 G13 LED Fluorescent Tube
1FT=4.5W, 2FT=8.5W, 3FT=13W, 4FT=17.5W/21W
T8 LED fluorescent lamp common lamp power 50%~80%! No ballast, instant start. Energy saving and carbon reduction, green environmental protection, no radiation, no Flash, no noise, no mosquito, low heat, long life. Special specifications can be customized.
Description
Features:
1.Excellent soft light technology extends the LED light source to light to eliminate glare, distillation of Visual effects.
2.Lifetime:>30,000hrs.
3.Healthprotection:noUV/IR.
4.Environmentalprotection:zeroMercury;lowerCO2emission.
5.Energysaving:electricitysavingratemorethan80%.
6.Lowlumenattenuation:HighqualityconstantcurrentdriverandgoodheatdissipationtechniquesguaranteeLowlumenattenuation.
7.Lightingconvenience:instantlighting-onwithnoflickering.
Specification
| Lamp Type | 1FT 4.5W | 2FT 8.5W | 3FT 13W | 4FT 17.5W | 4FT 21W |
| Model | - | - | - | - | - |
| Voltage | AC100~240V50~60Hz | ||||
| Wattage | 4.5W | 8.5W | 13W | 17.5W | 21W |
| Power Factor | >0.7 | >0.8 | >0.85 | >0.85 | >0.85 |
| Color | Cool White | ||||
| Color Temperature | 5700K | ||||
| Light Source | SMDLED | 84 PCS | 120 PCS | 168 PCS | 240 PCS |
| Cover | Transparent / Transparent + diffusion / Cream Cover | ||||
| Initial Lumen | see PDF | ||||
| Efficacy | see PDF | ||||
| CRI | Ra>70 | ||||
| Beam Angle | >120° | ||||
| Operating Temperature | -20℃~+45℃ | ||||
| Operating Humidity | 20%~90%R.H.Non-condensing | ||||
| Storage Temperature | -30℃~+80℃ | ||||
| Storage Humidity | 10%~95%R.H. | ||||
| Base | G13 | ||||
| Material | Aluminum / PC | ||||
| Insulation Class | IP20 | ||||
| Life | >30,000Hrs. | ||||
| Weight | 130g | 195g | 240g | 360g | 360g |
