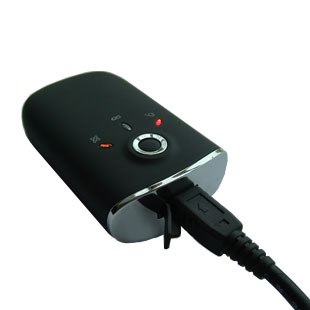

65 Channels USB GPS Receiver Data Logger

GT-750F/L-Lite(GT-750FL-Lite)
The GT-750F(L)-Lite is optimized for good performance and low cost. Its 65 parallel channels and Venus 6 search bins provide short start-up time and fast signal acquisition. USB connection.
Description

Stop production



The GT-750F(L)-Lite is a single board of GPS receiver for customers who require easy system integration and minimal development risk.



The GT-750F(L)-Lite is optimized for good performance and low cost. Its 65 parallel channels and Venus 6 search bins provide short start-up time and fast signal acquisition. Having fast time-to-first-fix and high sensitivity, the GT-750F(L)-Lite offers good navigation performance even in urban canyons.



The GT-750F(L)-Lite is capable of keeping up to 256K records or positions, including longitude, latitude, speed, UTC, and tag data. The location histories can be exported to mapping software such as Google Earth or TrackMaker.



Satellite-based augmentation systems, such as WAAS and EGNOS, are supported to yield improved accuracy.



The onboard patch antenna provides good signal reception. It provides fast satellite signal acquisition and short startup time. Acquisition sensitivity of –155dBm and tracking sensitivity of –160dBm offers good navigation performance even in urban canyons having limited sky view.



USB interface are provided on the interface connector. Supply voltage of 3.8V~8.0V is supported.



FEATURES
• Acquire and track 65 satellites simultaneously
• skytraq Venus 6 simultaneous time-frequency search bins
• Signal detection better than -160dBm
• Reacquisition sensitivity –155dBm
• Cold start < 30 seconds at –147dBm
• Hot start < 1sec under open sky
• 5m CEP accuracy
• SBAS (WAAS, EGNOS) support
• 2M Bytes flash memory for data logging, with 16 bytes binary data per record that stores up to 256K data records
• Log data can be exported to mapping software such as Google Earth and TrackMaker
• Support G-mouse function via USB cable
• Charger circuitry and battery socket for N3650 Li-ION battery
• More than 10 hours of operation
• Dimension:73x44x21 mm

Specification
Receiver Type65 parallel channels, L1 C/A code
AccuracyPosition 5m CEP
Velocity 0.1m/sec
Startup Time(average)< 1sec hot start
< 30sec cold start
Signal Reacquisition1s
Sensitivity-147dBm acquisition
-160dBm tracking
Update Rate1Hz standard
Dynamics4G (39.2m/sec2)
Operational LimitsAltitude< 18,000m or velocity< 515m/s
(COCOM limit, either may be exceeded but not both)
ProtocolNMEA-0183 V3.01
GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG, GPZDA
38400 baud, 8, N, 1
DatumDefault WGS-84
User definable
LED IndicatorRed - Charging battery Battery low
Green - Battery low
Orange- GPS status
(Flashing 1sec. ON/3 sec. OFF device is on but position is not fixed.)
(Flashing 1sec. ON/1 sec. OFF position is fixed)
SwitchTact switch ON / OFF
BatteryFor battery socket Li-ION rechargeable battery (1000 mA)
Input Voltage5V DC
Power Consumption< 68mA (1Hz standard version)
Dimension73mm L x 44mm W x 21mm H
Weight60g (Including Battery)
Operating Temperature-40oC ~ +85oC
Humidity5% ~ 95%
Log Data256,000 records in flash memory (2M bytes) in log data
NMEA format (Longitude, Latitude, Speed, UTC, Tag)
Output data formatWGS84 2-degree transverse mercator
Mapping software1. Google Earth
2. TrackMaker
3. LOGG extension
Log intervalby time 5sec/point
Gallery
Downloads
  File Type Local Download Download 2 Updated
GPS PhotoTagger_Windows XP_Vista_7
gpsPhotoTagger_install.rar
11.72 M



2011/06/07 15:48:24
PL2303 USB to Serial Converter_Windows 7
PL2303_Win7.rar
2.03 M



2011/06/07 15:46:00
PL2303 USB to Serial Converter_Windows Vista
PL2303_WinVista.rar
1.96 M



2011/06/07 15:45:32
PL2303 USB to Serial Converter_Windows98_2000_xp
PL2303_Win98_2k_xp.rar
2.92 M



2011/06/07 15:45:03
PL2303 USB to Serial Converter_Mac8_Mac9
PL2303_Mac8-9_v136b1.rar
10 KB



2011/06/07 15:44:25
PL2303 USB to Serial Converter_Linux
PL2303_Linux.rar
19 KB



2011/06/07 15:43:50
