產品
描述
框架類型：Plastic housing and blade material are UL 94V-0 rating
葉輪：Plastic(UL:94-0)
軸承：Ball / 1Ball / Sleeve Bearing
工作溫度：-10°C to +70°C
導線：UL 1007 AWG#26
可用電壓：5V / 12V / 24V
重量：35g
規格

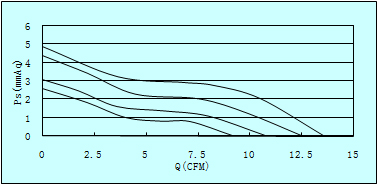

| 機種 | 軸承 SE | 軸承 B1 | 軸承 B2 | 額定 電壓(v) | 轉速 (RPM) | 額定 電流(A) | 功率 (W) | 風量 (CFM) | 靜壓 (mm-Aq) | 噪音 dB(A) |
| DF0501505XXLN | - | - | - | 5 | 4500 | 0.18 | 0.9 | 9.2 | 2.6 | 23.8 |
| DF0501505XXMN | - | - | - | 5 | 5000 | 0.22 | 1.1 | 10.8 | 3.1 | 27.1 |
| DF0501505XXHN | - | - | - | 5 | 5500 | 0.28 | 1.4 | 13.6 | 4.9 | 30.2 |
| DF0501512XXLN | - | - | - | 12 | 4500 | 0.12 | 1.4 | 9.2 | 2.6 | 23.8 |
| DF0501512XXMN | - | - | - | 12 | 5000 | 0.16 | 1.9 | 10.8 | 3.1 | 27.1 |
| DF0501512XXHN | - | - | - | 12 | 5500 | 0.22 | 2.6 | 12.5 | 4.4 | 30.2 |
| DF0501512XXUN | - | - | - | 12 | 6000 | 0.26 | 3.1 | 13.6 | 4.9 | 32.3 |
| DF0501524XXLN | - | - | - | 24 | 4500 | 0.08 | 1.9 | 9.2 | 2.6 | 23.8 |
| DF0501524XXMN | - | - | - | 24 | 5000 | 0.09 | 2.2 | 10.8 | 3.1 | 27.1 |
| DF0501524XXHN | - | - | - | 24 | 5500 | 0.1 | 2.4 | 12.5 | 4.4 | 30.2 |
| DF0501524XXUN | - | - | - | 24 | 6000 | 0.12 | 2.9 | 13.6 | 4.9 | 32.3 |
