產品
描述
框架類型：Plastic housing and blade material are UL 94V-0 rating
葉輪：Plastic(UL:94-0)
軸承：Ball / 1Ball / Sleeve Bearing
工作溫度：-10°C to +70°C
導線：UL 1007 AWG#26
可用電壓：5V / 12V
重量：7.5g
規格

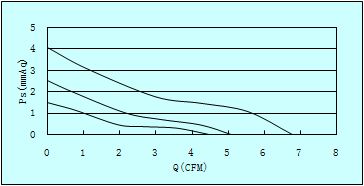

| 機種 | 軸承 SE | 軸承 B1 | 軸承 B2 | 額定 電壓(v) | 轉速 (RPM) | 額定 電流(A) | 功率 (W) | 風量 (CFM) | 靜壓 (mm-Aq) | 噪音 dB(A) |
| DF0450705XXLN | - | - | - | 5 | 4500 | 0.12 | 0.6 | 4.5 | 1.49 | 23.9 |
| DF0450705XXMN | - | - | - | 5 | 5500 | 0.14 | 0.7 | 5.1 | 2.49 | 29.2 |
| DF0450705XXHN | - | - | - | 5 | 6500 | 0.18 | 0.9 | 6.8 | 4.04 | 34.5 |
| DF0450712XXLN | - | - | - | 12 | 4500 | 0.07 | 0.7 | 4.5 | 1.49 | 23.9 |
| DF0450712XXMN | - | - | - | 12 | 5500 | 0.08 | 1 | 5.1 | 2.49 | 29.2 |
| DF0450712XXHN | - | - | - | 12 | 6500 | 0.1 | 1.2 | 6.8 | 4.04 | 34.5 |
